Product Summary

The TT2190 is a color TV horizontal deflectio with output applications.

Parametrics

TT2190 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: 1500 V; (2)Collector-to-Emitter Voltage VCEO: 800 V; (3)Emitter-to-Base Voltage VEBO: 6 V; (4)Collector Current IC: 8 A; (5)Collector Current (Pulse) ICP: 20 A; (6)Collector Dissipation PC: 2.0 W; (7)Tc=25℃: 35 W; (8)Junction Temperature Tj: 150 ℃; (9)Storage Temperature Tstg: -55 to +150 ℃.

Features

TT2190 features: (1)High speed; (2)High breakdown voltage (VCBO=1500V); (3)High reliability (Adoption of HVP process); (4)Adoption of MBIT process; (5)On-chip damper diode.

Diagrams

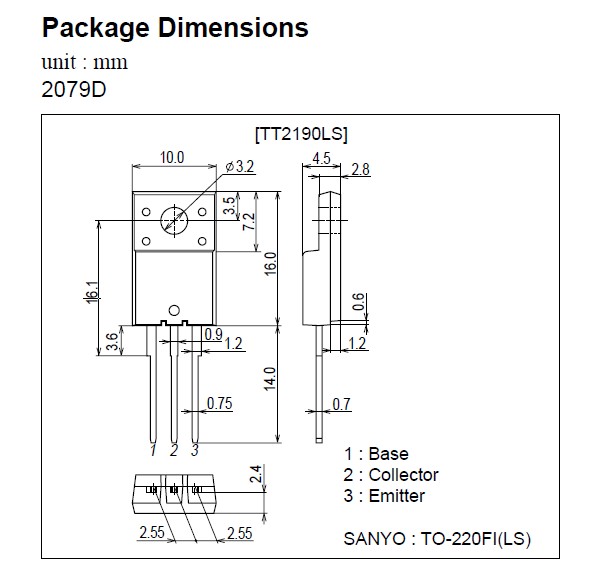

TT2190 Package Dimensions
