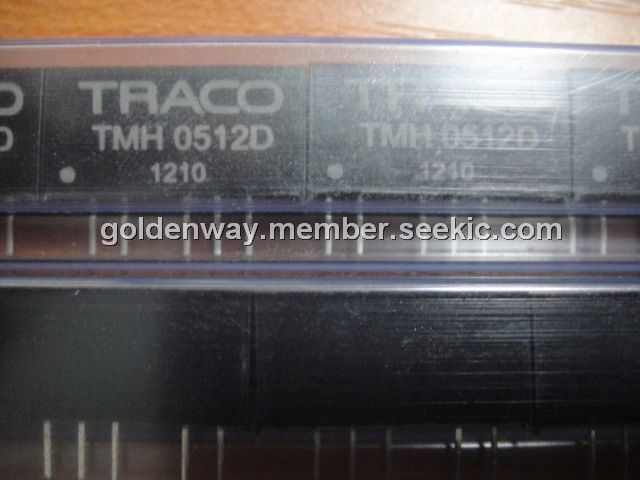

Product Summary

The TMH0512D is an ultra miniature, isolated 2 W DC/DC-converter in a Single-in-Line package (SIP). Requiring only 1.5 cm2 boardspace the TMH0512D offers the ideal solution in many space critical applicationsfor board level power distribution. The use of SMD-technology makesit possible to offer a product with high performance at low cost.

Parametrics

TMH0512D absolute maximum ratings: (1)Input voltage: 5 VDC ±10%; (2)Output voltage: ±12 VDC; (3)Output current max.: ± 80 mA; (4)Efficiency typ.: 79 %; (5)Operating Temperature range: – 40℃ to +75℃; (6)Case Operating Temperature: +95℃ max.; (7)Storage Operating Temperature: – 40℃ to +105℃.

Features

TMH0512D features: (1)Single-in-Line Package (SIP); (2)Fully SMD-design; (3)Isolated Single and Dual Output; (4)I/O-Isolation 1000 VDC; (5)High Efficiency up to 83 %; (6)Pin-compatible with other Manufacturers; (7)100% Burn-in (8 h).

Diagrams

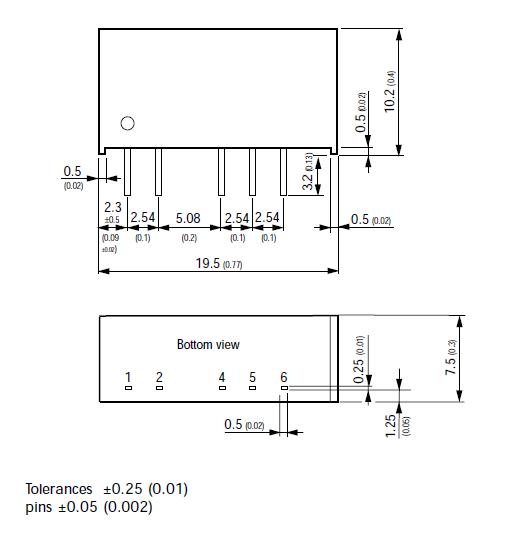

TMH0512D package dimensions
