Product Summary
The TSOP1238 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP1238 is compatible with all common IR remote control data formats. This component TSOP1238 has not been qualified according to automotive specifications.
Parametrics
TSOP1238 absolute maximum ratings: (1)Supply voltage (pin 2), VS: - 0.3 to + 6 V; (2)Supply current (pin 2), IS: 3mA; (3)Output voltage (pin 3), VO: - 0.3 to (VS + 0.3) V; (4)Output current (pin 3), IO: 5mA; (5)Junction temperature, Tj: 100℃; (6)Storage temperature range, Tstg: - 25 to + 85℃; (7)Operating temperature range, Tamb: - 25 to + 85℃; (8)Power consumption, Ptot: 10 mW; (9)Soldering temperature, Tsd: 260℃.
Features
TSOP1238 features: (1)Very low supply current; (2)Photo detector and preamplifier in one package; (3)Internal filter for PCM frequency; (4)Improved shielding against EMI; (5)Supply voltage: 2.5 V to 5.5 V; (6)Improved immunity against ambient light; (7)Insensitive to supply voltage ripple and noise; (8)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

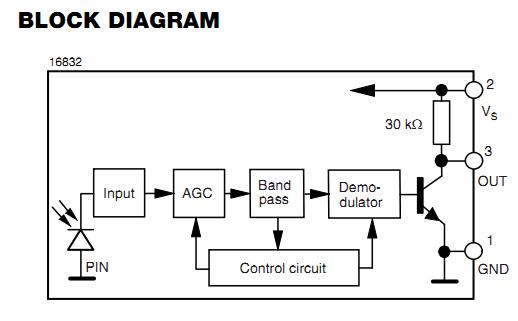

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSOP1238 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238. |
Vishay Semiconductors |
Infrared Receivers 4.5-5.5V 38kHz |
Data Sheet |
|
|
|||||||||||||
TSOP12381CA1 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238CB1 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238GL1 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238KA1 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238KD1 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TSOP1238KS1 |
Other |
Data Sheet |
Negotiable |
|
