Product Summary

The P6SMB200CA is a Surface Mount TRANSZORB Transient Voltage Suppressor. It is suitable for Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial and telecommunication.

Parametrics

P6SMB200CA absolute maximum ratings: (1)Peak power dissipation with a 10/1000 μs waveform, PPPM: 600 W; (2)Power dissipation on infinite heatsink, TA = 50℃, PD: 5.0 W; (3)Peak forward surge current 8.3 ms single half sine-wave uni-directional only, IFSM: 100 A; (4)Operating junction and storage temperature range, TJ, TSTG: - 65 to + 150℃.

Features

P6SMB200CA features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %; (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)Solder dip 260℃, 40 s; (11)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

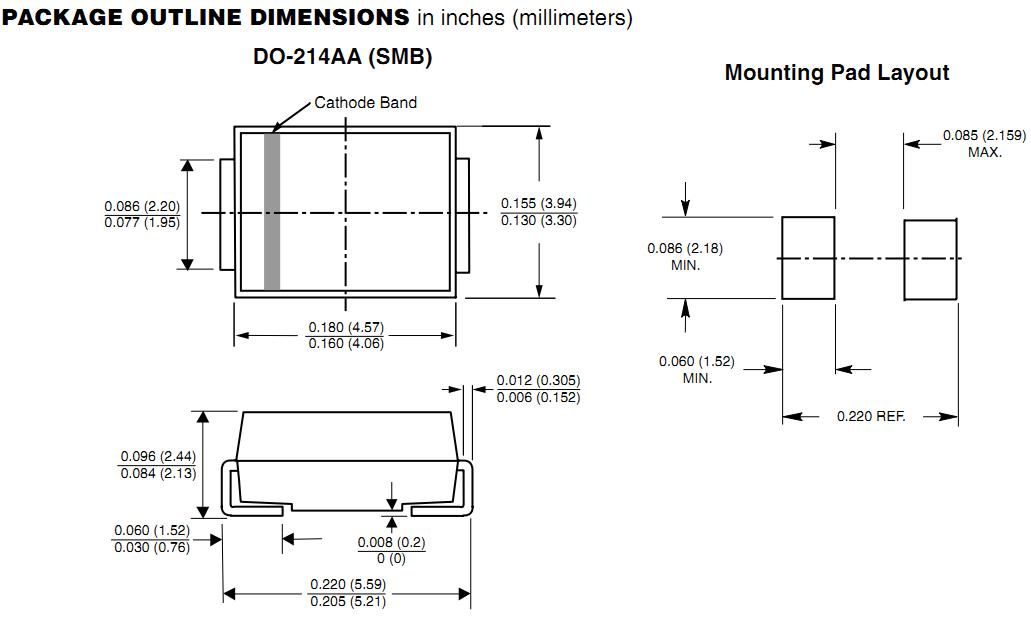

P6SMB200CA package outline dimension
