Product Summary

The Analog Devices AD7541AKNZ is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. It is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages.The AD7541AKNZ is functionally and pin compatible with the industry standard AD7541AKNZ device and offers improved specifications and performance. The improved design ensures that the AD7541AKNZ is latch-up free so no output protection Schottky diode sare required.

Parametrics

AD7541AKNZ absolute maximum ratings: (1)VDD to GND: +17 V; (2)VREF to GND: ±25 V; (3)VRFB to GND: ±25 V; (4)Power Dissipation (Any Package): 450mW; (5)Storage Temperature: –65 to +150℃; (6)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7541AKNZ features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication1; (3)2-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

Diagrams

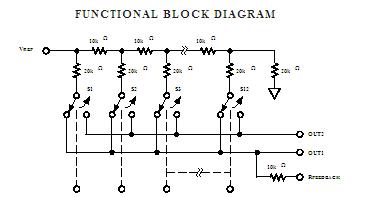

AD7541AKNZ FUNCTIONAL BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7541AKN
AD7541AKN


IC DAC 12BIT MULTIPLYING 18-DIP

Data Sheet

0-20: $9.99

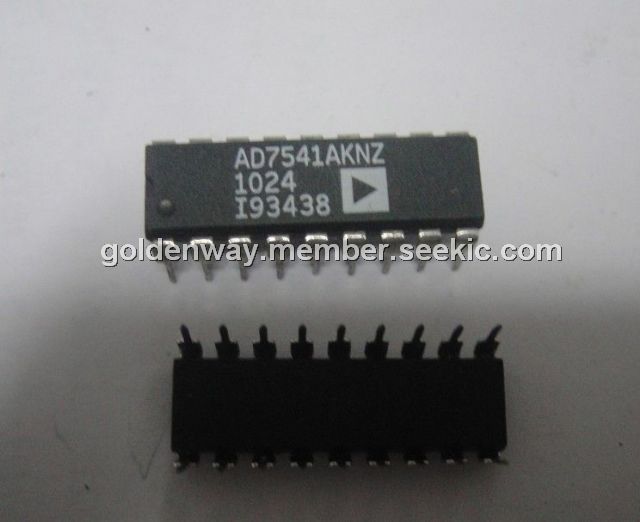

AD7541AKNZ
AD7541AKNZ


IC DAC 12BIT MULT MONO 18-DIP

Data Sheet

0-1: $9.50
1-10: $8.64
10-100: $7.34
100-250: $6.70
250-500: $6.26
500-1000: $5.76
