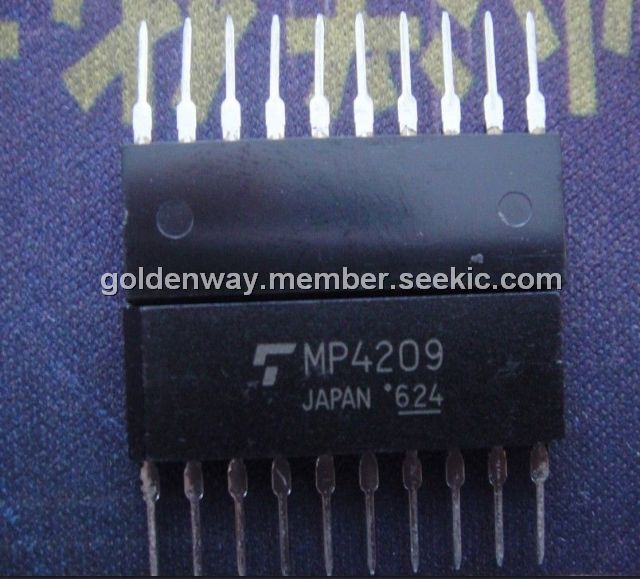

Product Summary
The MP4209 is a power MOSFET Module. It is applicated for printer head pin driver and pulse motor driver. In addition, the MP4209 is applicated for solenoid driver.
Parametrics
MP4209 absolute maximum ratings: (1)drain source voltage: 100 V; (2)Drain gate voltage: 100 V; (3)Gate source voltage: ± 20 V; (4)Drain current DC: 3 A; (5)Drain IPower dissipation: 2.0 W; (6)Single pulse avalanche energy: 140 mJ; (7)AVALANCHE CURRENT: 3 A; (8)Channel temperature: 150℃; (9)Storage temperature range: -55℃ to +150℃.
Features
MP4209 features: (1)4 V gate drive available; (2)small package by full molding; (3)high drain power dissipation; (4)low drain- source ON resistance; (5)high forward transfer admittance; (6)low leakage current; (7)enhancement mode.

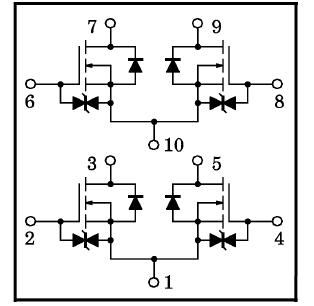

Diagrams
