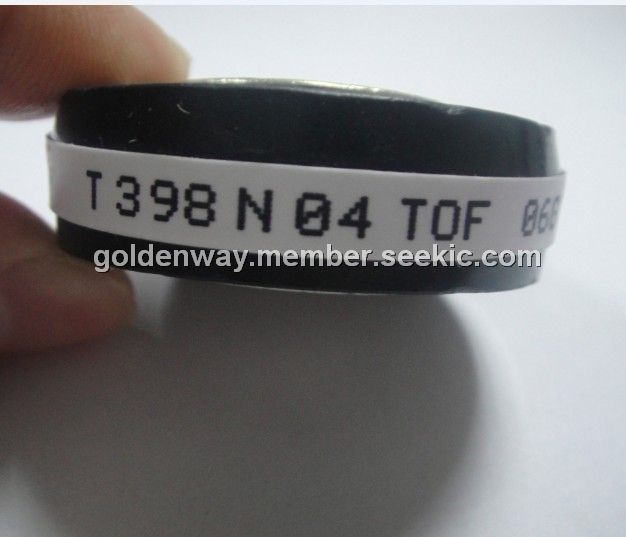

Product Summary

The T398N04TOF is a Phase Control SCR. Typical applications for the T398N04TOF includes power supplies, motor control, battery chargers, induction heaters, welders, and platers.

Parametrics

T398N04TOF absolute maximum ratings: (1)Vrrm (volts): 400 Volts ; (2)Vdrm (volts): 400 Volts; (3)It (rms) Amps: 800 Amps; (4)It (avg) Amps: 398 Amps; (5)Itsm Amps: 6,300 Amps; (6)di/dt (A/microseconds): 200; (7)dv/dt (V/microseconds): 1,000; (8)I2T@50Hz (A2Sec): 198,000; (9)Vtm (volts): 1.68 Volts; (10)tq (microseconds): 200 MicroSeconds; (11)Irrm Peak (mA): 30 MilliAmps; (12)Idrm Peak (mA): 30 MilliAmps; (13)Igt (mA): 150 MilliAmps; (14)Vgt (volts): 1.4 Volts.

Features

T398N04TOF features: (1)clamping force, F: 3 to 6 kN; (2)weight, G: typ. 70 g; (3)creepage distance: 17 mm; (4)humidity classification, DIN 40040: C; (5)vibration resistance, f = 50 Hz: 50 m/s2; (6)outline, attached: DIN 41814-151 A4.

Diagrams

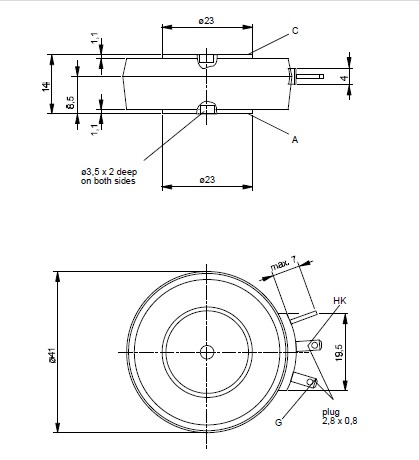

T398N04TOF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T398N04TOF
T398N04TOF

Infineon Technologies

SCR Modules 400V 6.3KA

Data Sheet

Negotiable
