Product Summary
The LB8632V-TRM is a general purpose camera motor driver IC that supports low saturation output and low voltage drive. The LB8632V-TRM is a miniature thin form factor IC that provides circuit structures and I/O logic that reduce development times and costs.
Parametrics
LB8632V-TRM absolute maximum ratings: (1)maximum supply voltage, 8.0V; (2)output current, Iomax: 3.A; (3)allowable power dissipation, Pd max: 800mW; (4)operating temperature, Topr, -20 to 75℃; (5)storage temperature, Tstg, -55 to 150℃.
Features
LB8632V-TRM features: (1)3.6V and a wide application range; (2)built-in 1 channel low voltage drive low saturation; (3)built in thermal protection circuit; (4)provided in the miniature ultra thin SSOP package.

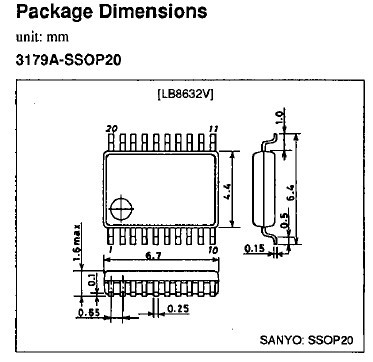

Diagrams
 |
