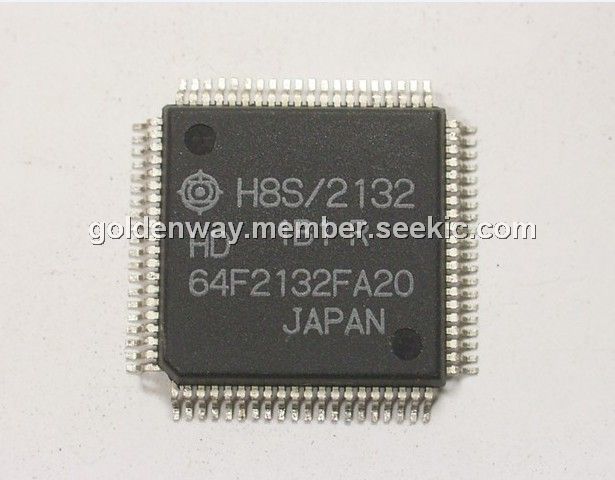

HD64F2132FA20

microcomputer, QFP, -0.3 to +7.0 V, upward-compatible, power-down state

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~100.00

PartNumber:: HD64F2132FA20

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-18

From Other Seller

Part Number:HD64F2132FA20
US $10.00 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

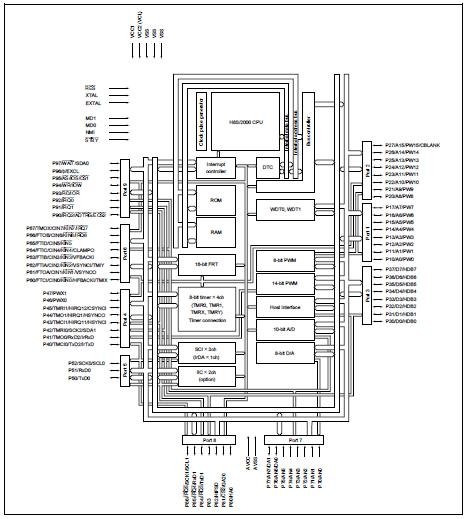

The HD64F2132FA20 is a high-performance microcomputer with a 32-bit H8S/2000 CPU core, and a set of on-chip supporting functions required for system configuration. This kind of CPU of the HD64F2132FA20 can execute basic instructions in one state, and is provided with sixteen internal 16-bit general registers with a 32-bit configuration, and a concise and optimized instruction set.

Parametrics

HD64F2132FA20 absolute maximum ratings: (1)power supply voltage: -0.3 to +7.0 V; (2)input voltage (except ports 6 and 7):-0.3 to Vcc+0.3 V; (3)input voltage (CIN input not selected for port 6):-0.3 to Vcc+0.3 V; (4)input voltage (CIN input selected for port 6):lower voltage of -0.3 to Vcc+0.3 and AVCC+0.3 V; (5)input voltage (port 7):-0.3 to AVcc+0.3 V; (6)analog power supply voltage:-0.3 to +7.0 V; (7)analog input voltage:-0.3 to AVcc+0.3 V; (8)storage temperature:-55 to +125 ℃;(9)operating temperature:regular specifications:-20 to +75 ℃.

Features

HD64F2132FA20 features: (1)upward-compatible with H8/300 and H8/300H CPUs-can execute H8/300 and H8/300H object programs; (2)general-register architecture-sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers); (3)sixty-five basic instructions such as 8/16/32-bit arithmetic and logic instructions and powerful bit-manipulation instructions; (4)power-down state:transition to power-down state by sleep instruction and CPU clock speed selection; (5)all frequently-used instructions execute in one or two states; (6)two CPU operating modes:normal mode and advanced mode.
