Product Summary
The NTCLE100E3681JB0 is a Special Accuracy NTC Thermistor. It has a negative temperature coefficient. The NTCLE100E3681JB0 consists of a chip with two tin-plated copper leads. It is grey lacquered and not insulated. The NTCLE100E3681JB0 is very accurate (± 0.5℃) over a trajectory from 25℃ to 85℃.
Parametrics
NTCLE100E3681JB0 absolute maximum ratings: (1)Resistance at 25℃: 4.7 kΩ to 100 kΩ; (2)Temperature measurement accuracy (between 25℃ and 85℃): ± 0.5℃; (3)Maximum dissipation: 250 mW; (4)Dissipation factor δ (for information only): 7 mW/K; (5)Response time (for information only): 1.2 s; (6)Thermal time constant τ (for information only): 11 s; (7)Operating temperature range at zero dissipation (continuously): - 40℃ to + 125℃; (8)Operating temperature range at maximum dissipation: 0℃ to + 55 ℃.
Features
NTCLE100E3681JB0 features: (1)Excellent accuracy between 25℃ and 85℃; (2)High stability over a long life; (3)Old part number was 2322 640 10; (4)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

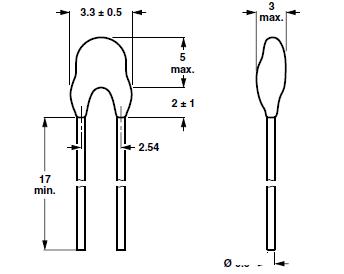

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

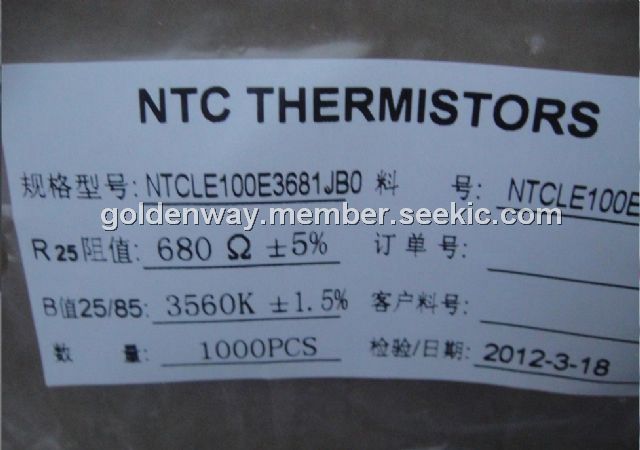

 NTCLE100E3681JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 680ohms 5% Radial |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
NTCLE100CL101JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 100 ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTCLE100CL103HB0 |
Vishay/BC Components |
Thermistors - NTC NTC 10Kohms R25@3% |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTCLE100CL103JT1 |
Vishay/BC Components |
Thermistors - NTC 10K OHM 5% |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTCLE100CL104JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 100K ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTCLE100CL109JT1 |
Vishay/BC Components |
Thermistors - NTC 10 OHM 5% |
Data Sheet |
|
|
||||||||||||||
|
NTCLE100CL123JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 12K ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||||
