Product Summary

The DSP45-12A is a phase-leg rectifier diode.

Parametrics

DSP45-12A absolute maximum ratings: (1)VRRM: 1200/1600 V; (2)IF(RMS): 2x70 A; (3)IF(AV)M: 2x45 A; (4)IF(RMS) TVJ = TVJM: 70 A; (5)IF(AV)M TC = 130°C; 180° sine: 45 A; (6)Md, Mounting torque 1.13/10 Nm/lb.in.; (7)FC, Clip mounting force 1.13/10 Nm/lb.in.; (8)VISOL, 50/60 Hz, RMS, t = 1 minute, leads-to-tab: 2500 V; (9)Weight TO-268 / TO-247: 4/6 g.

Features

DSP45-12A features: (1)International standard packages JEDEC TO-247 AD and TO-268 AA surface mountable; (2)For single and three phase bridge configuration; (3)Planar passivated chips; (4)Epoxy meets UL 94V-0 flammability classification; (5)Version AR isolated and UL registered E153432.

Diagrams

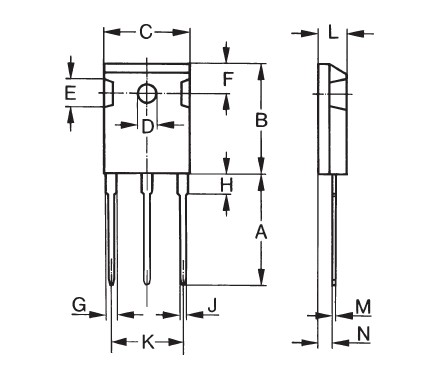

DSP45-12A package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DSP45-12A
DSP45-12A

Ixys

Rectifiers 45 Amps 1200V

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DSP45-12A
DSP45-12A

Ixys

Rectifiers 45 Amps 1200V

Data Sheet

Negotiable
DSP45-16A
DSP45-16A

Ixys

Rectifiers 45 Amps 1600V

Data Sheet

Negotiable
DSP45-16AR
DSP45-16AR

Ixys

Rectifiers 45 Amps 1600V

Data Sheet

Negotiable
