Product Summary

The UF4006 is a Fast Rectifier.

Parametrics

UF4006 absolute maximum ratings: (1)VRRM, Maximum Repetitive Reverse Voltage: 800V; (2)IF(AV), Average Rectified Forward Current, .375 lead length @ TA = 75℃: 1.0 A; (3)IFSM, Non-Repetitive Peak Forward Surge Current, 8.3ms Single Half-Sine-Wave: 30 A; (4)TSTG, Storage Temperature Range: -65 to +150 ℃; (5)TJ, Operating Junction Temperature: -65 to +150 ℃.

Features

UF4006 features: (1)Low forward voltage drop; (2)High surge current capability; (3)High reliability; (4)High current capability.

Diagrams

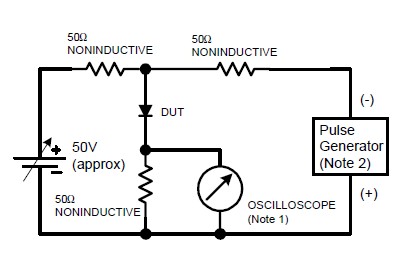

UF4006 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UF4006
UF4006

Fairchild Semiconductor

Rectifiers 800V 1a Rectifier Glass Passivated

Data Sheet

0-1: $0.26
1-25: $0.19
25-100: $0.11
100-250: $0.08
UF4006_Q
UF4006_Q

Fairchild Semiconductor

Rectifiers 800V 1a Rectifier Glass Passivated

Data Sheet

Negotiable
UF4006-E3
UF4006-E3

Other


Data Sheet

Negotiable
UF4006-E3/23
UF4006-E3/23

Vishay Semiconductors

Rectifiers 800 Volt 1.0A 75ns 30 Amp IFSM

Data Sheet

Negotiable
UF4006-E3/4
UF4006-E3/4

Vishay Semiconductors

Rectifiers 800 Volt 1.0A 75ns 30 Amp IFSM

Data Sheet

Negotiable
UF4006-E3/51
UF4006-E3/51

Vishay Semiconductors

Rectifiers 800 Volt 1.0A 75ns 30 Amp IFSM

Data Sheet

Negotiable
UF4006-E3/53
UF4006-E3/53

Vishay Semiconductors

Rectifiers 800 Volt 1.0A 75ns 30 Amp IFSM

Data Sheet

0-3000: $0.08
3000-3900: $0.08
3900-6000: $0.07
UF4006-E3/73
UF4006-E3/73

Vishay Semiconductors

Rectifiers 800 Volt 1.0A 75ns 30 Amp IFSM

Data Sheet

0-1: $0.11
1-10: $0.09
10-100: $0.08
100-250: $0.07
