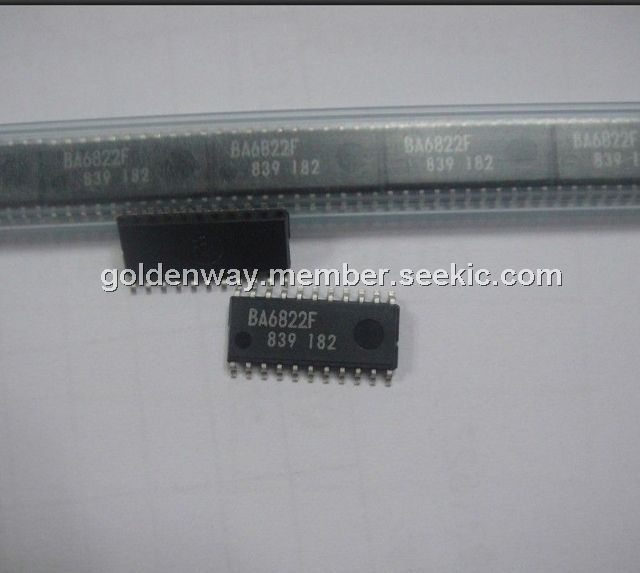

BA6822F

two-channel, 12-point LED driver, 22-pin SOP, 7.0V, 450mW, BA6822F

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.62~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.62~2.50

PartNumber:: BA6822F

Brand:: Rohm - Rohm | Pack: SOP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-05

From Other Seller

Part Number:BA6822F
US $1.62 - 2.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

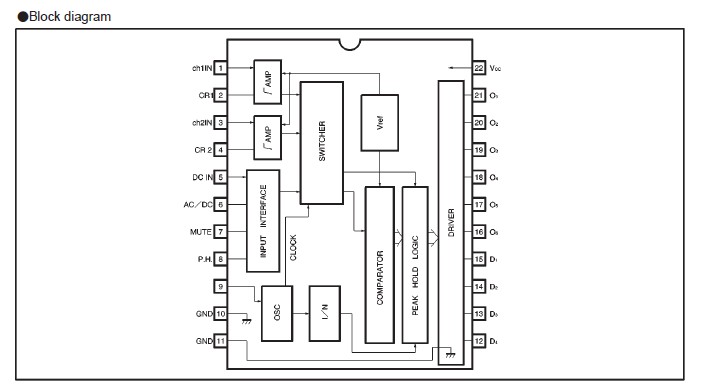

The BA6822F is a two-channel, 12-point LED driver for VU-scale bar-level meters. The IC is available in 22-pin SOP package, and uses a dynamic-drive system that can drive two 12-point displays. The BA6822F has independent AC and DC inputs, and the AC input mode has a peak hold circuit (with cancel function). The device also features a power-on mute, so steps to prevent erroneous LED lighting at power on are not required. The BA6822F is ideal for: Level meters for VCRs, stereo cassette players, audio amplifiers and karaoke equipment.

Parametrics

BA6822F absolute maximum ratings: (1)Power supply voltage, VCC: 7.0V; (2)Power dissipation, Pd: 450mW; (3)Operating temperature, Topr: -20 to +70℃; (4)Storage temperature, Tstg: -55 to +125℃; (5)Maximum output driver current, ICM: 40 mA; (6)Maximum display switch driver current, IDM: 20 mA.

Features

BA6822F features: (1) Uses dynamic-drive system to display two 12-point channels. 22-pin SOP and 22-pin shrink DIP packages; (2) Independent AC and DC inputs provided (one input displays one channel). Switching function allows two-mode display; (3) Upper 8 points have peak hold function in AC mode (two seconds). A peak-hold cancel function is also provided; (4) A mute function is provided, and muting can be applied externally; (5) Power on mute function.
