Product Summary
The 8TQ100 is a Schottky rectifier. It has been optimized forlow reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications are in switchingpower supplies, converters, freewheeling diodes, andreverse battery protection
Parametrics
8TQ100 absolute maximum ratings: (1)Max. Average Forward Current: 8A; (2)Max. Peak One Cycle Non-Repetitive Surge Current 5μs Sine or 3μs Rect. pulse: 850A; (3)Max. Peak One Cycle Non-Repetitive Surge Current 10ms Sine or 6ms Rect. pulse: 230A; (4)Non-Repetitive Avalanche Energy: 7.50 mJ; (5)Repetitive Avalanche Current 0.50 A.
Features
8TQ100 features: (1)175℃ TJ operation; (2)Low forward voltage drop; (3)High frequency operation; (4)High purity, high temperature epoxy encapsulation forenhanced mechanical strength and moisture resistance; (5)Guard ring for enhanced ruggedness and long term reliability; (6)Designed and qualified for industrial level.

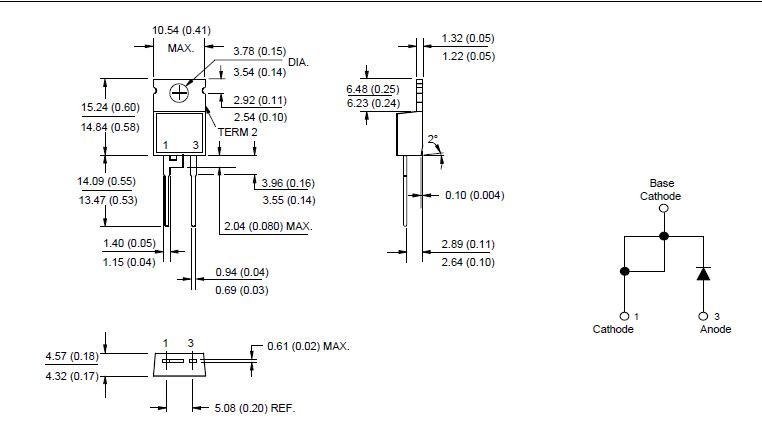

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8TQ100 |
DIODE SCHOTTKY 100V 8A TO-220AC |
Data Sheet |
Negotiable |
|
||||||||||||||
8TQ100G |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
8TQ100GSTRLPBF |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt 850 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
8TQ100GS |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
8TQ100GSTRL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
8TQ100GPbF |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
8TQ100GSTRRPBF |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt 850 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
8TQ100STRL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 8.0 Amp 100 Volt |
Data Sheet |
Negotiable |
|
