Product Summary
The UF4007 is a Fast Rectifier.
Parametrics
UF4007 absolute maximum ratings: (1)VRRM, Maximum Repetitive Reverse Voltage: 1000V; (2)IF(AV), Average Rectified Forward Current, .375 lead length @ TA = 75℃: 1.0 A; (3)IFSM, Non-Repetitive Peak Forward Surge Current, 8.3ms Single Half-Sine-Wave: 30 A; (4)TSTG, Storage Temperature Range: -65 to +150 ℃; (5)TJ, Operating Junction Temperature: -65 to +150 ℃.
Features
UF4007 features: (1)Low forward voltage drop; (2)High surge current capability; (3)High reliability; (4)High current capability.

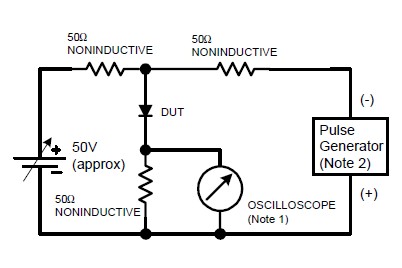

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UF4007 |
Fairchild Semiconductor |
Rectifiers 1000V 1a Rectifier Glass Passivated |
Data Sheet |
|
|
|||||||||||||
UF4007/1 |
Vishay Semiconductors |
Rectifiers Vr/1000V Io/1A BULK |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007_Q |
Fairchild Semiconductor |
Rectifiers 1000V 1A Rectifier Glass Passivated |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007-E3/23 |
Vishay Semiconductors |
Rectifiers 1000 Volt 1.0A 75ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007-E3/3 |
Vishay Semiconductors |
Rectifiers 1000 Volt 1.0A 75ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007-E3/4 |
Vishay Semiconductors |
Rectifiers 1000 Volt 1.0A 75ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007-E3/51 |
Vishay Semiconductors |
Rectifiers 1000 Volt 1.0A 75ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
UF4007-E3/53 |
Vishay Semiconductors |
Rectifiers 1000 Volt 1.0A 75ns 30 Amp IFSM |
Data Sheet |
|
|
