Product Summary

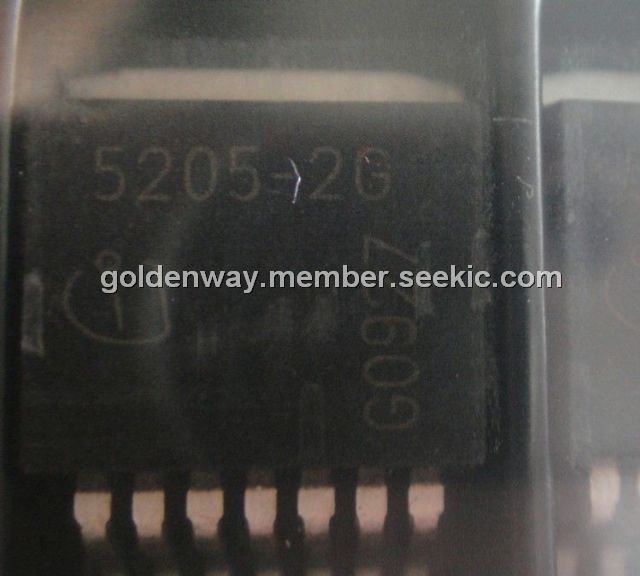

The TLE5205-2G is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part isbuilt of TLE5205-2G using the Infineon multi-technology process SPT which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure. Operation modes forward (cw) TLE5205-2G, reverse (ccw), brake and high impedance are invoked from just two control pins with TTL/CMOS compatible levels.
Parametrics
TLE5205-2G absolute maximum ratings: (1)Supply voltage, VS: -0.3 to 40V; (2)Logic input voltage, VIN1, 2: -0.3 to 7V; (3)Diagnostics output voltage, VEF: -0.3 to 7V; (4)Output current (cont.), IOUT1, 2: -5 to 5A; (5)Output current (peak), IOUT1, 2: -6 to 6A; (6)Junction temperature, Tj: -40 to 150℃; (7)Storage temperature, Tstg: -50 to 150℃ ; (8)Junction case, RthjC: 3K/W; (9)Junction ambient, RthjA: 65K/W; (10)Junction case, RthjC: 5K/W; (11)Junction ambient, RthjA: 50K/W.
Features
TLE5205-2G features: (1)Delivers up to 5 A continuous 6 A peak current; (2)Optimized for DC motor management applications; (3)Operates at supply voltages up to 40V; (4)Very low RDS ON; typ. 200 mΩ @ 25℃ per switch; (5)Output full short circuit protected; (6)Overtemperature protection with hysteresis and diagnosis; (7)Short circuit and open load diagnosis with open drain error flag; (8)Undervoltage lockout; (9)CMOS/TTL compatible inputs with hysteresis; (10)No crossover current; (11)Internal freewheeling diodes; (12)Wide temperature range; -40℃ < Tj < 150℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE5205-2G |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers Bridge for Throttle Control |
Data Sheet |
Negotiable |
|
||||
|
TLE5205-2GP |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers 5-A H-Bridge DC-MOTORAPPS 40V 6A |
Data Sheet |
Negotiable |
|
||||
