Product Summary

The SM4007 is a Standard silicon rectifier diode.

Parametrics

SM4007 absolute maximum ratings: (1)Max. averaged fwd. current, R- load, TT = 75℃: 1 A; (2)Repetitive peak forward current f > 15 Hz: 10 A; (3)Peak fwd. surge current 50 Hz half sinus- wave: 40 A; (4)Max. thermal resistance junction to ambient: 45 K/ W; (5)Max. thermal resistance junction to terminals: 10 K/ W; (6)Operating junction temperature: -50℃ to +175℃; (7)Storage temperature: -50℃ to +175℃.

Features

SM4007 features: (1)max. solder temperature: 260℃; (2)plastic material has UL classification 94 V - 0.

Diagrams

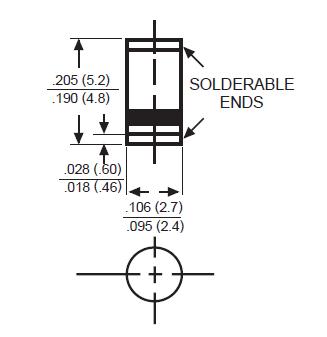

SM4007 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SM4007-W
SM4007-W

Rectron

Rectifiers 1N4007 1A 1000V

Data Sheet

0-1: $0.23
1-100: $0.15
100-500: $0.12
500-1000: $0.12
SM4007PL-TP
SM4007PL-TP

Micro Commercial Components (MCC)

Rectifiers 1A, 1000V 1A, 1000V

Data Sheet

0-1: $0.30
1-25: $0.21
25-100: $0.13
100-500: $0.08
SM4007
SM4007

Rectron

Diodes (General Purpose, Power, Switching) GP Si Rect 1A,1000V

Data Sheet

0-1: $0.11
1-25: $0.09
25-100: $0.08
100-250: $0.07
