Product Summary
The TC7W74F is a high speed C2MOS D Flip Flop fabricated with silicon gate C2MOS technology. The TC7W74F achieves the high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation.
Parametrics
TC7W74F absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 7V; (2)DC input voltage, VIN: -0.5 to VCC+0.5V; (3)DC output voltage, VOUT: -0.5 to VCC+0.5V; (4)Input diode current, IIK: ±20mA; (5)Output diode current, IOK: ±20mA; (6)DC output current, IOUT: ±25mA; (7)DC VCC/ground current, ICC: ±25mA; (8)Power dissipation, PD: 200(US8)mW; (9)Storage temperature range, Tstg: -65 to 150℃; (10)Lead temperature (10 s), TL: 260℃.
Features
TC7W74F features: (1)High speed: fmax = 77MHz (typ.) at VCC=5V; (2)Low power dissipation: ICC = 2μA (max) at Ta=25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Output drive capability: 10 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 4 mA (min); (6)Balanced propagation delays: tpLH ? tpHL; (7)Wide operating voltage range: VCC (opr) = 2 to 6V.

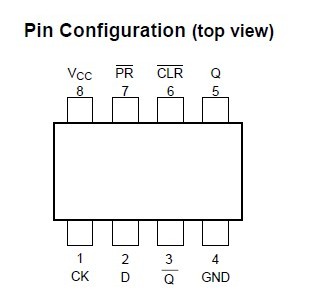

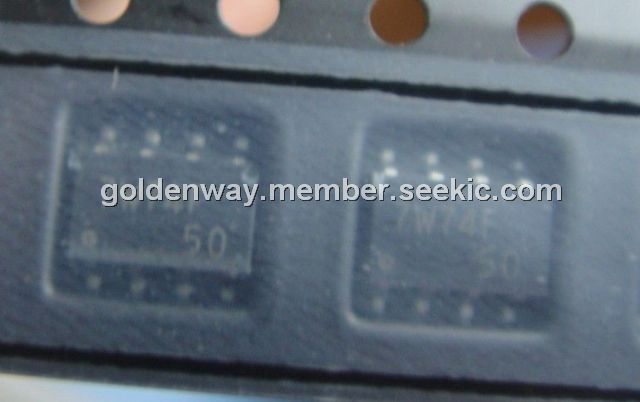

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC7W74FK(TE85L) |
|
IC FLIP FLOP D-TYPE US8 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TC7W74FK(TE85L,F) |
|
IC FLIP FLOP D-TYPE US8 |
Data Sheet |
|
|
||||||||||||||||||
 |
TC7W74FUTE12LF |
Toshiba |
Flip Flops x34 D FLIP-FLOP |
Data Sheet |
|
|
||||||||||||||||||
|
TC7W74FKTE85LF |
Toshiba |
Flip Flops x34 D FLIP-FLOP |
Data Sheet |
|
|
||||||||||||||||||
|
TC7W74FU(TE12L) |
|
IC FLIP-FLOP D-TYPE SM8-8 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TC7W74FU(TE12L,F) |
|
IC FLIP-FLOP D-TYPE SM8-8 |
Data Sheet |
|
|
||||||||||||||||||
