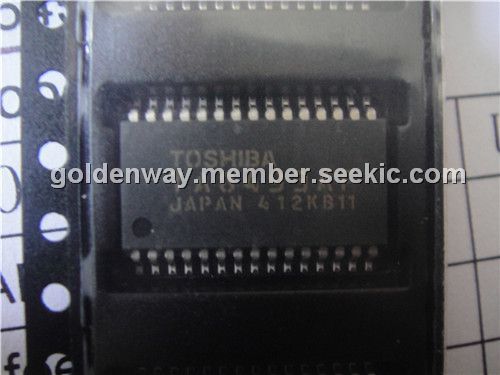

Product Summary

The TA8493AF is a 3-Phase Full Wave Brushless DC Motor Driver IC for CD-ROM Drives. It has been developed for use in CD-ROM drive spindle motors. The TA8493AF contains in its upper stage a discrete power transistor (P-ch-MOS) and uses direct PWM control system, which enables the IC to provide superior thermal efficiency. Furthermore, the multi-chip structure of the TA8493AF facilitates dispersion of the heat generated inside the package, making it possible to suppress heat concentration.

Parametrics

TA8493AF absolute maximum ratings: (1)Power Supply Voltage:VCC:7V,VM:16V ; (2)Output Current:1.5 A ; (3)Power Dissipation:1.0 W ; (4)Junction Temperature:150℃; (5)Operating Temperature:-20℃ to 75℃; (6)Storage Temperature:-55℃ to 150℃.

Features

TA8493AF features: (1)Multi-chip structure (3 × 2SJ465 chips built-in) ; (2)Direct PWM control system ; (3)Drive system: 180°drive system; (4)Built-in current limiter: ILIM = 0.7 A (typ.) (at RF = 0.33Ω) ; (5)Built-in reversing brake/short brake functions ; (6)FG signal output (using hall element output signal) ; (7)Built-in hall bias ; (8)Built-in thermal shutdown circuit ; (9)Package: MFP-30 .

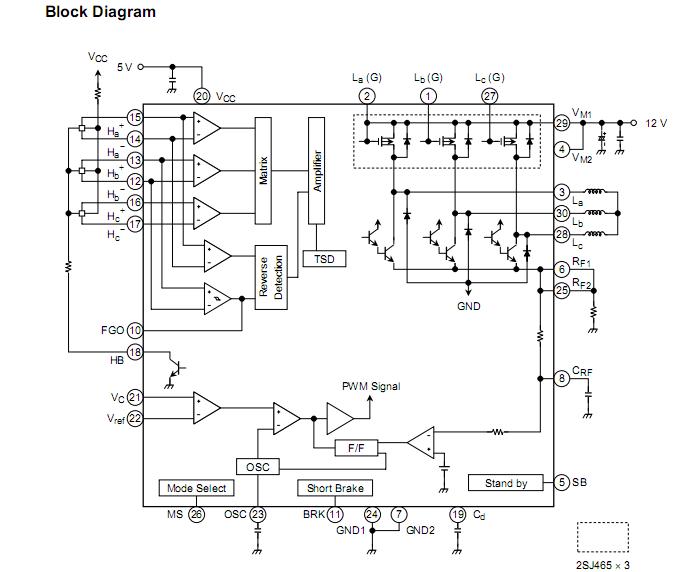

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TA8493AF
TA8493AF
Other

Data Sheet
Negotiable
