Product Summary

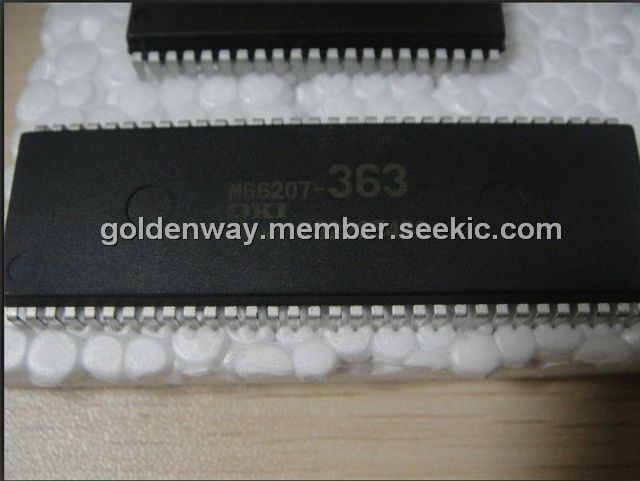

The M66207-363 is a high performance microcontroller that employs OKI original nX-8/200 CPU core. This chip includes a 16-bit CPU, ROM, RAM, I/O ports, multifunction 16-bit timers, 10-bit A/D converter, serial I/O port, and pulse width modulator (PWM). The M66207-363 is the OTP (One-Time Programmable) version of the MSM66201/66207.
Parametrics
M66207-363 absolute maximum ratings: (1)Supply Voltage, VDD at GND=AGND=0V: –0.3 to 7.0v; (2)Input Voltage, VI at GND=AGND=0V: –0.3 to VDD+0.3 v; (3)Output Voltage, VO at GND=AGND=0V: –0.3 to VDD+0.3 v; (4)Analog Ref. Voltage, VREF at GND=AGND=0V: –0.3 to VDD+0.3 v; (5)Analog Input Voltage, VAI at GND=AGND=0V: –0.3 to VREF v; (6)Power Dissipation, PD at Ta=85℃: 930mW at 64-pin shrink DIP; 565 mw at 64-pin QFP; 1120mw at 68-pin QFJ; (7)Storage Temperature, TSTG: –55 to +150℃.
Features
M66207-363 features: (1)64K address space for program memory: Internal ROM : MSM66201 16K bytes, MSM66207 32K bytes; (2)64K address space for data memory : Internal RAM: MSM66201 512 bytes, MSM66207 1024 bytes; (3)High-speed execution Minimum cycle for instruction : 400ns @ 10MHz; (4)Powerful instruction set: Instruction set superior in orthogonal matrix; 8/16-bit data transfer instructions; 8/16-bit arithmetic instructions; Multiplication and division operation instructions; bit manipulation instructions; Bit logic instrucitons; ROM table reference instructions; (5)Abundant addressing modes : Register addressing; Page addressing; Pointing register; indirect addressing; Stack addressing; Immediate value addressing; (6)I/O port Input-output port : 5 ports× 8 bits (Each bit can be assigned to input or output).
