Product Summary

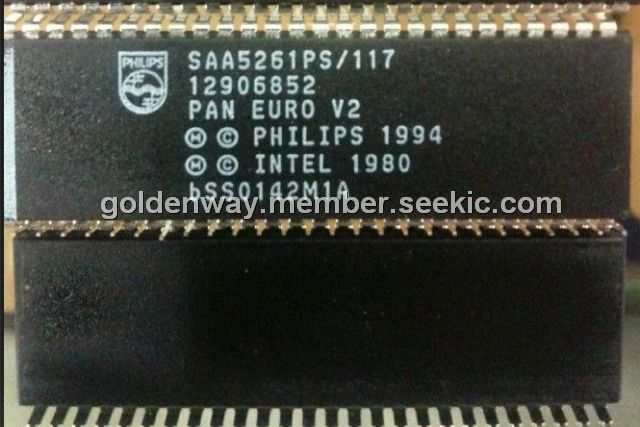

The SAA5261PS117 is a single-chip ten page 625-line World System Teletext decoder with a high-level command interface, and is SAFARI compatible. The SAA5261PS117 is a single-chip one page version of the SAA5261PS117. Both devices are designed to minimize the overall system cost, due to the high-level command interface offering the benefit of a low software overhead in the TV microcontroller.
Parametrics
SAA5261PS117 absolute maximum ratings: (1)VDDX all supply voltages: -0.5 +4.0 V; (2)VI input voltage (any input): -0.5 VDD + 0.5 or +4.1 V; (3)VO output voltage (any output): -0.5 VDD + 0.5 V; (4)IO output current (each output): 10 mA; (5)IIO(d) diode DC input or output current: 20 mA; (6)Tamb ambient temperature: -20 +70℃; (7)Tstg storage temperature: -55 +125℃.
Features
SAA5261PS117 features: (1)Complete 625 line teletext decoder in one chip reduces printed circuit board area and cost; (2)Automatic detection of transmitted fastext links or service information (packet 8/30); (3)On-Screen Display (OSD) for user interface menus using teletext and dedicated menu icons; (4)Video Programming System (VPS) decoding; (5)Wide Screen Signalling (WSS) decoding; (6)Pan-European, Cyrillic, Greek/Turkish and French/Arabic character sets in each chip; (7)High-level command interface via I2C-bus gives easy control with a low software overhead.

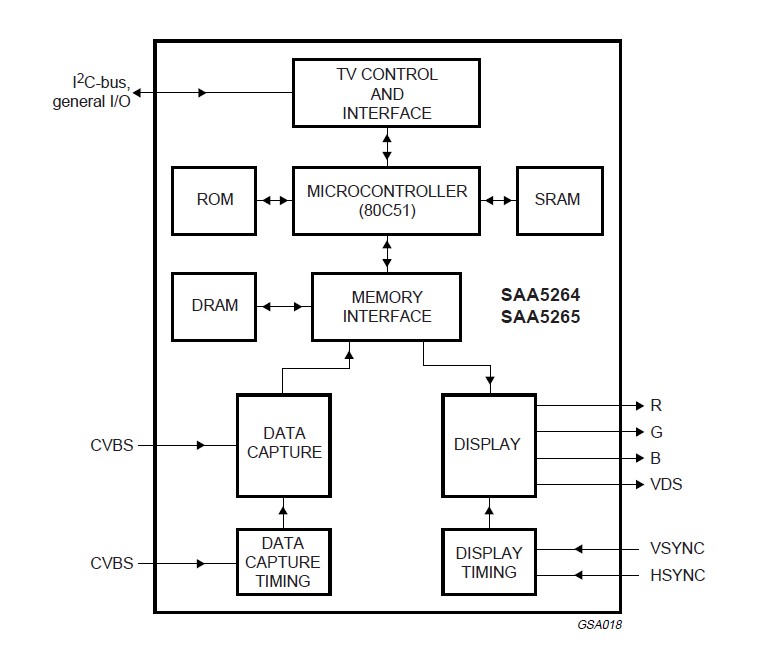

Diagrams
 |
