RF2360

RF amplifier IC, SOP, low-cost, high-linearity, 175 mA, 5MHz to 1500MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~50.00

PartNumber:: RF2360

Brand:: RF Micro Devices - RFMD | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:RF2360
US $10.00 - 50.00
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

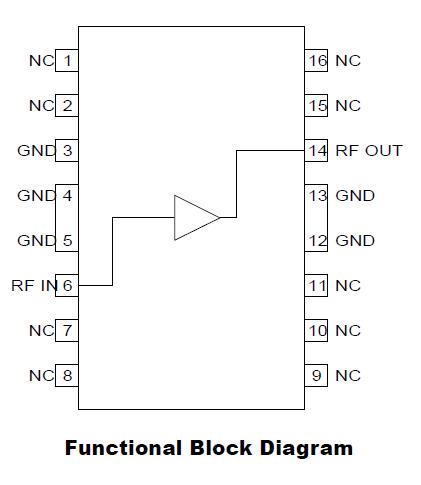

The RF2360 is a general purpose, low-cost, high-linearity RF amplifier IC. The device is manufactured on a Gallium Arsenide process and is featured in an SOP-16 batwing package. The RF2360 has been designed for use as an easily cascadable 75Ω gain block with a Noise Figure of less than 2dB. Gain flatness better than 0.5dB from 5MHz to 1000MHz, and high linearity make this part ideal for cable TV applications.

Parametrics

RF2360 absolute maximum ratings: (1)Device Current: 175 mA; (2)Device Voltage: 9 V; (3)Input RF Power: +13 dBm; (4)Output Load VSWR: 20:1; (5)Ambient Operating Temperature: -40 to +85 ℃; (6)Storage Temperature: -40 to +150 ℃.

Features

RF2360 features: (1)5MHz to 1500MHz Operation; (2)Internally Matched Input and Output; (3)20dB Small Signal Gain; (4)1.2dB Noise Figure; (5)+24dBm Output Power; (6)Single 6V to 9V Positive Power Supply.
