Product Summary

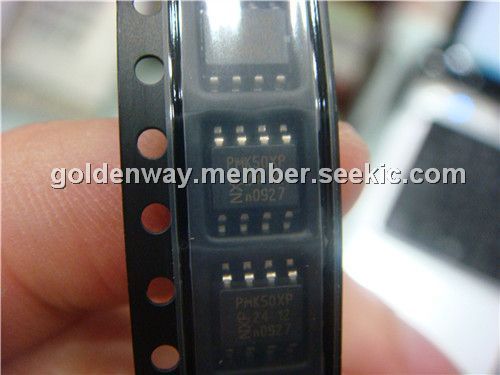

The PMK50XP is an extremely low level P-channel enhancement mode Field-Effect Transistor (FET). It is in a plastic package and using TrenchMOS technology. It is designed and qualified for use in computing, communications, consumer and industrial applications only. Its applications are battery management and load switching. It is plastic small outline package.

Parametrics

Absolute maximum ratings: (1)VDS, drain-source voltage: max=20V when 25 ℃ ≤ Tj ≤150℃; (2)VDGR, drain-gate voltage: max=-20V when 25 ℃ ≤ Tj ≤ 150 ℃; RGS = 20 kΩ; (3)VGS, gate-source voltage: min=-12V, max=12V; (4)ID, drain current: max=-7.9A when Tsp = 25 ℃, VGS = -4.5 V;max=-5A when Tsp = 100 ℃, VGS = -4.5 V; (5)IDM, peak drain current: max=-31.6A when Tsp = 25 ℃, tp ≤ 10 μs, pulsed; (6)Ptot, total power dissipationmax=5W when Tsp = 25 ℃; (7)Tstg, storage temperature: min=-55℃, max=150 ℃; (8)Tj , junction temperature: min=-55℃, max=150 ℃; (9)Source-drain diode: IS, source current: max=-4.1A when Tsp=25℃;ISM, peak source current: max=-16.4A when Tsp = 25 ℃, tp ≤ 10 μs, pulsed.

Features

Features: (1)Low conduction losses due to low; (2)on-state resistance.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PMK50XP,518
PMK50XP,518
NXP Semiconductors
MOSFET MOSFET P-CH FET 20V 7.9A
Data Sheet
0-1: $0.35
1-25: $0.31
25-100: $0.27
100-250: $0.23
