Product Summary

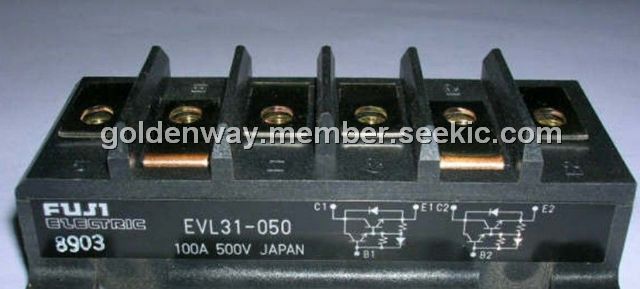

The EVL31-050 is a bipolar transistor module.

Parametrics

EVL31-050 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO (sus): 450 V; (4)Ic cont: 100 Amps; (5)Pc: 500 W; (6)hFE: 100 min; (7)switching time: 2.0 μsec.

Features

EVL31-050 features: (1)power transistors and free wheel diodes are built into one package; (2)all terminals are insulated from mounting plate; (3)suited for motor control applications with 220 to 240 volts inputs; (4)all terminals are screw-clamp type.
