Product Summary

The AT25256A-10PU-2.7 is an electrically-erasable programmable read only memory. It is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25256A-10PU-2.7 is available in space saving 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead SAP packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Parametrics

AT25256A-10PU-2.7 absolute maximum ratings: (1)Operating Temperature: 55℃ to +125℃; (2)Storage Temperature: 65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: 1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0mA.

Features

AT25256A-10PU-2.7 features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1); (3)Data Sheet Describes Mode 0 Operation; (4)Low-voltage and Standard-voltage Operation; (5)20 MHz Clock Rate (5V); (6)64-byte Page Mode and Byte Write Operation; (7)Block Write Protection; (8)Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection; (9)Self-timed Write Cycle (5 ms Max); (10)High-reliability; (11)Lead-free/Halogen-free; (12)Available in Automotive; (13)Die Sales: Wafer Form, Waffle Pack, and Bumped Die.

Diagrams

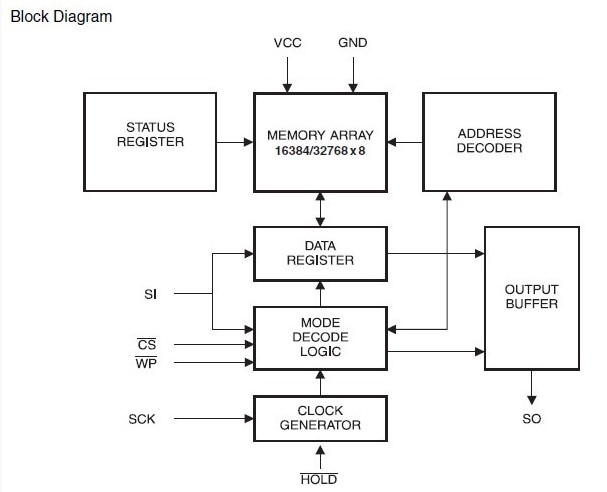

AT25256A-10PU-2.7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

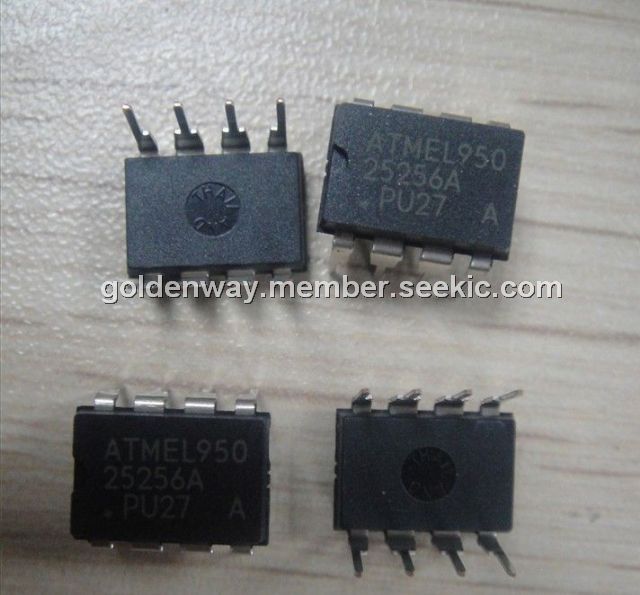

AT25256A-10PU-2.7
AT25256A-10PU-2.7

Atmel

EEPROM NIPDAU 2.7V - 10MS 2.7V

Data Sheet

Negotiable
