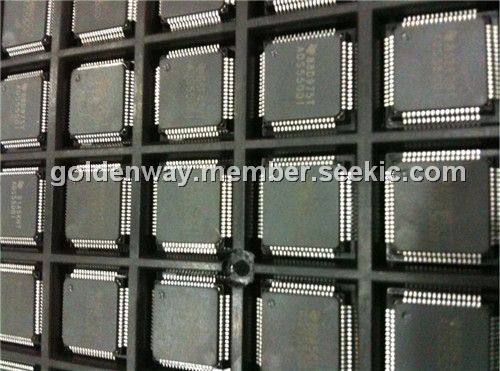

Product Summary
The ADS5500I is a high-performance, 14-bit, 125MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in very little space, the ADS5500I has excellent power consumption of 780mW at 3.3V single-supply voltage. The ADS5500I is available in a 64-pin TQFP PowerPAD package and is specified over the full temperature range of -40℃ to +85℃. The applications of the ADS5500I are Communication Receivers, Base Station Infrastructure, Test and Measurement Instrumentation, Single and Multichannel Digital Receivers, Radar, Infrared, Video and Imaging, Medical Equipment.
Parametrics
ADS5500I absolute maximum ratings: (1)Supply Voltage: AVDD to AGND, DRVDD to DRGND:-0.3V to +3.7V, AGND to DRGND:±0.1V; (2)Analog input to AGND:-0.15V to +2.5V; (3)Logic input to DRGND:-0.3V to DRVDD + 0.3V; (4)Digital data output to DRGND:-0.3V to DRVDD + 0.3V; (5)Input current (any input):30mA; (6)Operating temperature range:-40℃ to +85℃; (7)Junction temperature:+105℃; (8)Storage temperature range:-65℃ to +150℃.
Features
ADS5500I features: (1)14-Bit Resolution; (2)125MSPS Sample Rate; (3)High SNR: 70.5dBFS at 100MHz fIN; (4)High SFDR: 82dBc at 100MHz fIN; (5)2.3VPP Differential Input Voltage; (6)Internal Voltage Reference; (7)3.3V Single-Supply Voltage; (8)Analog Power Dissipation: 578mW,Total Power Dissipation: 780mW; (9)Serial Programming Interface; (10)TQFP-64 PowerPAD Package.

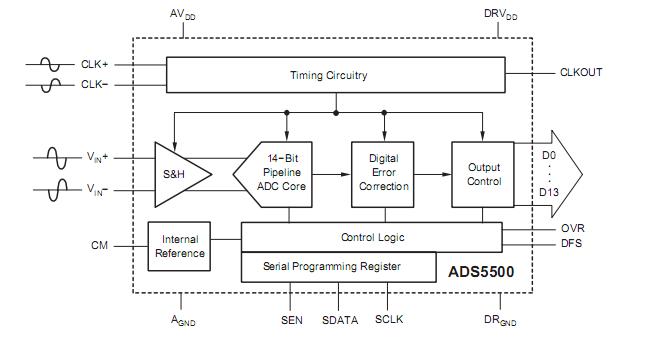

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS5500IPAP |
Texas Instruments |
ADC (A/D Converters) 14-Bit 125MSPS ADC |
Data Sheet |
|
|
||||||||
|
ADS5500IPAPG4 |
Texas Instruments |
ADC (A/D Converters) 14-Bit 125MSPS ADC |
Data Sheet |
|
|
||||||||
|
ADS5500IPAPR |
Texas Instruments |
ADC (A/D Converters) 14-Bit 125MSPS ADC |
Data Sheet |
|
|
||||||||
|
ADS5500IPAPRG4 |
Texas Instruments |
ADC (A/D Converters) 14-Bit 125MSPS ADC |
Data Sheet |
|
|
||||||||
