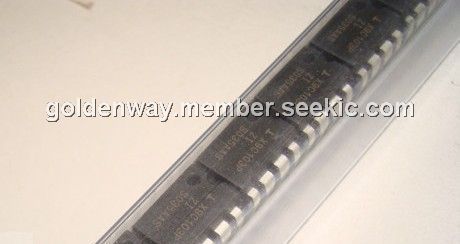

Product Summary
The X9C103P is an E2POT nonvolatile digital potentiometer. The high (VH) and low (VL) terminals of the X9C103P are equivalent to the fixed terminals of a mechanical potentiometer. The minimum voltage is –5V and the maximum is +5V. It should be noted that the terminology of VL and VH references the relative position of the terminal in relation to wiper movement direction selected by the U/D input and not the voltage potential on the terminal.
Parametrics
X9C103P absolute maximum ratings: (1)Temperature under Bias: –65℃ to +135℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on CS, INC, U/D and VCC with Respect to VSS: –1V to +7V; (4)Voltage on VH and VL Referenced to VSS: –8V to +8V DV = |VH–VL|; (5)Lead Temperature (Soldering, 10 seconds): +300℃; (6)Wiper Current: ±1mA.
Features
X9C103P features: (1)Compatible with X9102/103/104/503; (2)Low Power CMOS; (3)LCC = 5V; (4)Active Current, 3mA Max; (5)Standby Current, 500mA Max; (6)99 Resistive Elements; (7)Temperature Compensated; (8)±20% End to End Resistance Range; (9)100 Wiper Tap Points; (10)Wiper Positioned via Three-Wire Interface; (11)Similar to TTL Up/Down Counter; (12)Wiper Position Stored in Nonvolatile; (13)Memory and Recalled on Power-Up; (14)100 Year Wiper Position Data Retention.

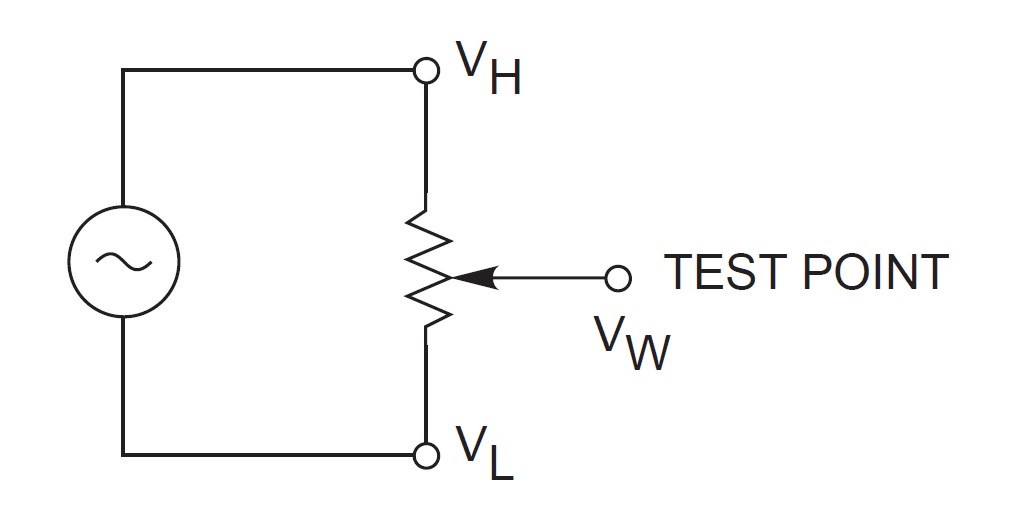

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X9C103P |
|
IC DIGITAL POT 10K 100TP 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
X9C103PI |
|
IC DIGITAL POT 10K 100TP 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
X9C103PZ |
Intersil |
Digital Potentiometer ICs 10K EEPOTTM POT CMOS 8LD COM |
Data Sheet |
|
|
||||||||||||
|
X9C103PIZ |
|
IC XDCP 100-TAP 10K EE 8-DIP |
Data Sheet |
|
|
||||||||||||
