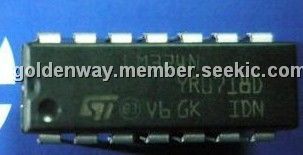

LM324N

DIP-14, low power, quad op amp, 50 mA, 5nADC, Continuous

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: LM324N

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-01

From Other Seller

Part Number:LM324N
US $0.10 - 100.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

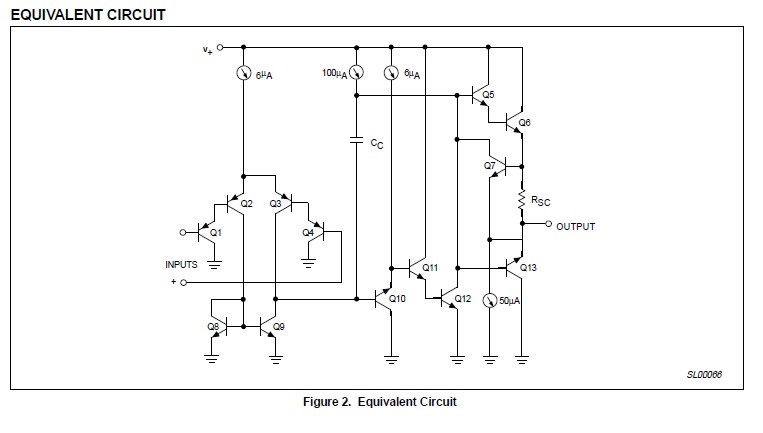

The LM324N is the low power quad op amp which consists of four independent, high-gain, internally frequency compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. The unity gain crossover frequency and the input bias current are temperature-compensated.

Parametrics

LM324N absolute maximum ratings: (1)Supply voltage: 32 or ±16 VDC; (2)Differential input voltage: 32 VDC; (3)Input voltage: -0.3 to +32 VDC; (4)Maximum power dissipation,TA=25℃ (still-air): N package, 1420 mW; F package 1190 mW; D package 1040 mW; (5)Output short-circuit to GND one amplifier, VCC<15VDC and TA=25℃: Continuous; (6)Input current (VIN<-0.3V): 50 mA; (7)Operating ambient temperature range: 0 to +70℃; (8)Storage temperature range -65 to +150 ℃; (9)Lead soldering temperature (10sec max): 300℃.

Features

LM324N features: (1)Internally frequency-compensated for unity gain; (2)Large DC voltage gain: 100dB; (3)Wide bandwidth (unity gain): 1MHz (temperature-compensated); (4)Wide power supply range Single supply: 3VDC to 30VDC or dual supplies: ±1.5VDC to ±15VDC; (5)Very low supply current drain: essentially independent of supply voltage (1mW/op amp at +5VDC); (6)Low input biasing current: 45nADC (temperature-compensated); (7)Low input offset voltage: 2mVDC and offset current: 5nADC; (8)Differential input voltage range equal to the power supply voltage; (9)Large output voltage: 0VDC to VCC-1.5VDC swing.
