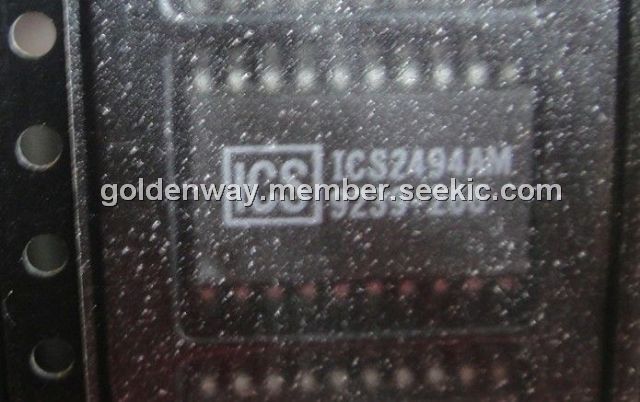

ICS2494AM-266T-A

Dot Clock Generator, 20 pin SOP, dual phaselocked loop frequency synthesizer, -0.5V to +7V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: ICS2494AM-266T-A

Brand:: Integrated Circuit Systems - ICS | Pack: SOP | D/C: 92+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-26

From Other Seller

Part Number:ICS2494AM-266T-A
US $1.00 - 10.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The Dot Clock Generator ICS2494AM-266T-A is an integrated circuit dual phaselocked loop frequency synthesizer capable of generating sixteen video dot clock frequencies and eight memory clock frequencies for use with high performance video display systems. Utilizing CMOS technology to implement all linear, digital and memory functions, the ICS2494AM-266T-A provides a low-power, small-footprint, low-cost solution to the generation of video dot clocks. Outputs of ICS2494AM-266T-A are compatible with XGA, VGA, EGA, MCGA, CGA, MDA, as well as the higher frequencies
needed for advanced applications in desktop publishing and workstation graphics.

Parametrics

ICS2494AM-266T-A absolute maximum ratings: (1)Supply Voltage, V DD: -0.5V to +7V; (2)Input Voltage, V IN: -0.5V to VDD+0.5V; (3)Output Voltage, V OUT: -0.5V to VDD+0.5V; (4)Clamp Diode Current, VIK & IOK: ±30mA; (5)Output Current per Pin, I OUT: ±50mA; (6)Operating Temperature, T o: 0℃ to 70℃; (7)Storage Temperature, T S: -85℃ to +150℃; (8)Power Dissipation, P D: 500mW.

Features

ICS2494AM-266T-A features: (1)World standard ICS2494A has been reconfigured to allow 8 memory frequencies; (2)Mask-programmable frequencies; (3)Pre-programmed versions for Industry Standard VGA chips; (4)Glitch-free frequency transitions; (5)Provision for external frequency input; (6)Internal clock remains locked when the external frequency input is selected; (7)Low power CMOS device technology; (8)Small footprint - 20-pin DIP or SOIC.
