Product Summary
SanRex Power Module, DFA75BA160, is complex isolated module which is designed for rash current circuit. The DFA75BA160 contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line.
Parametrics
DFA75BA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600V; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 1700V; (3)Output Current (D.C.), ID: 75A; (4)Surge forward current, IFSM: 910/1000A; (5)Operating Junction Temperature, Tj: －40 to +150℃.
Features
DFA75BA160 features: (1)This Module is designed very compactly; (2)diode module and thyristor put together; (3)isolated type between electorode terminal and mounting base.

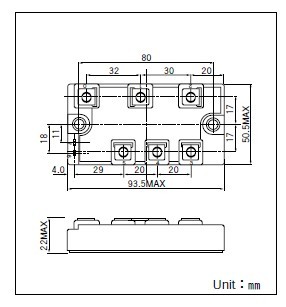

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DFA75BA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
DFA75BA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DFA75BA80 |
Other |
|
Data Sheet |
Negotiable |
|
||||
