Product Summary

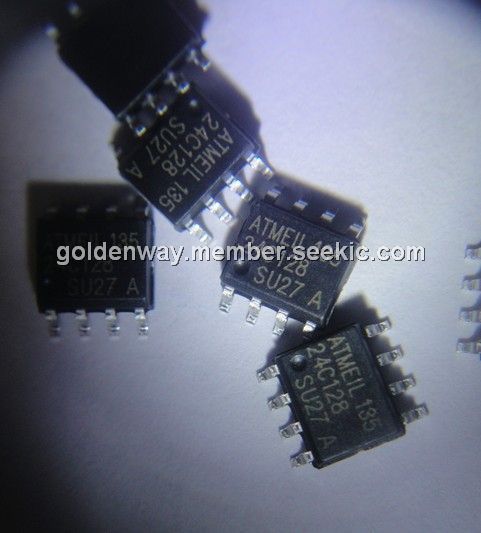

The AT24C128N-10SU-2.7 is a Two-wire Serial EEPROM. It provides 131,072/262,144 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The AT24C128N-10SU-2.7 is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. In addition, the AT24C128N-10SU-2.7 is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.
Parametrics
AT24C128N-10SU-2.7 absolute maximum ratings: (1)Operating Temperature:–55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:–1.0V to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.
Features
AT24C128N-10SU-2.7 features: (1)Low-voltage and Standard-voltage Operation: 2.7 (VCC = 2.7V to 5.5V), 1.8 (VCC = 1.8V to 3.6V) ; (2)Internally Organized 16,384 x 8 and 32,768 x 8 ; (3)Two-wire Serial Interface ; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression ; (5)Bidirectional Data Transfer Protocol ; (6)1 MHz (5V), 400 kHz (2.7V, 2.5V) and 100 kHz (1.8V) Compatibility ; (7)Write Protect Pin for Hardware and Software Data Protection ; (8)64-byte Page Write Mode (Partial Page Writes Allowed) ; (9)Self-timed Write Cycle (5 ms Max) ; (10)High Reliability:Endurance: One Million Write Cycles, Data Retention: 40 Years ; (11)Extended Temperature and Lead-free/Halogen-free Devices Available ; (12)Die Sales: Wafer Form, Waffle Pack, and Bumped Wafers.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT24C128N-10SU-2.7 |
Atmel |
EEPROM JEDEC SOIC-8 |
Data Sheet |
Negotiable |
|
||||
 |
AT24C128N-10SU-2.7 SL383 |
|
IC EEPROM 128KBIT 1MHZ 8SOIC |
Data Sheet |
Negotiable |
|
||||
