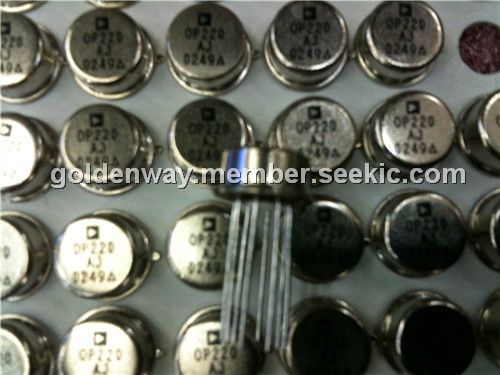

Product Summary

The OP220AJ is a monolithic dual operational amplifier that can be used either in single or dual supply operation. The low offset voltage, and input offset voltage tracking as low as 1.0 μV/℃, make this micropower precision dual operational amplifier.

Parametrics

OP220AJ absolute maximum ratings: (1)supply voltage: ±18 V; (2)differential input voltage: 30 V or supply voltage; (3)input voltage: supply voltage; (4)output short-circuit duration: indefinite; (5)storage temperature range: -65 to +150 ℃; (6)operating temperature range: -55 to +125 ℃; (7)lead temperature: +300 ℃; (8)junction temperature: -65 to +150 ℃.

Features

OP220AJ features: (1)excellent TCVOS match: 2μV/℃ max; (2)low input offset voltage: 150 μV max; (3)low supply current: 100 μA; (4)single-supply operation: +5V to +30 V; (5)low input offset voltage drift: 0.75 μV/℃; (6)high open-loop gain: 2000 V/mV; (7)high PSRR: 3 μV/V; (8)low input bias current: 12nA; (9)wide common-mode voltage range: V- to within 1.5 V of V+; (10)pin compatible with 1458, LM158, LM2904; (11)available in die form.

Diagrams

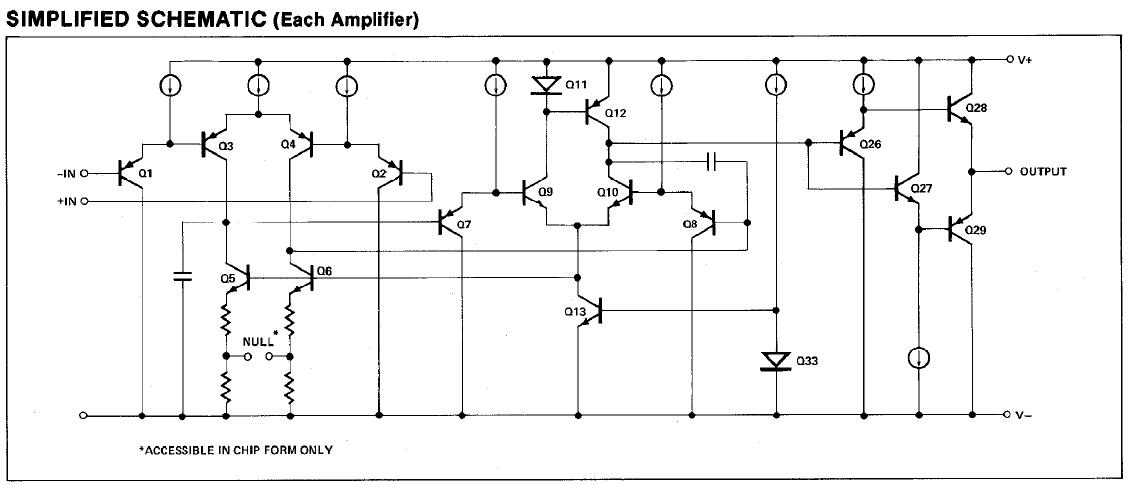

OP220AJ block diagram
