Product Summary

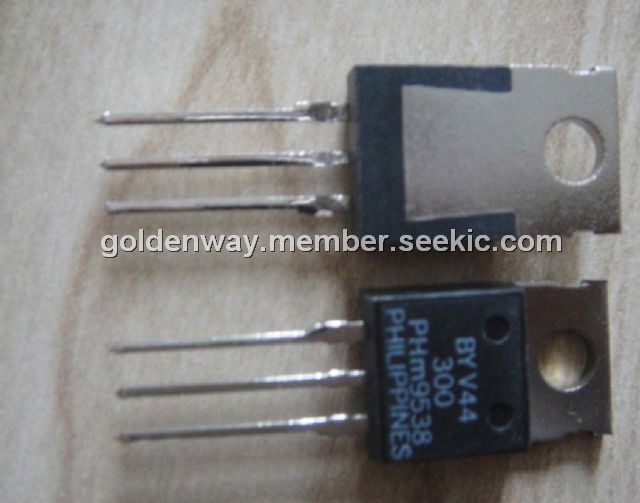

The BYV44 is a dual, common cathode, ultra-fast,epitaxial rectifier diode which intended for use as output rectifiers in high frequency switched mode power supplies. The BYV44 supplied in the conventional leaded SOT78 (TO220AB) package.

Parametrics

BYV44 absolute maximum ratings: (1)Peak repetitive reverse voltage, VRRM: -300 to -500V; (2)Crest working reverse voltage, VRWM: 300 to 500V; (3)Continuous reverse voltage, Tmb≤ 117℃, VR: 300 to 500V; (4)average forward current square wave; δ=0.5, Ths≤54℃, Io(AV): 30A; (5)repetitive peak forward current, IFRM: 30A; (6)non-repetitive peak forward current, IFSM: 150 to 160A; (7)storage temperature, Tstg: -40 +150℃; (8)operating junction temperature, Tj: 150℃.

Features

BYV44 features: (1)Low forward volt drop; (2)Fast switching; (3)Soft recovery characteristic; (4)High thermal cycling performance; (5)Low thermal resistance.

Diagrams

BYV44  SYMBOL

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BYV44
BYV44

Other


Data Sheet

Negotiable
BYV44-500
BYV44-500

NXP Semiconductors

Rectifiers RAIL REC-EPI

Data Sheet

Negotiable
BYV44-500,127
BYV44-500,127

NXP Semiconductors

Rectifiers RAIL REC-EPI

Data Sheet

0-3850: $0.45
3850-6000: $0.44
