Product Summary

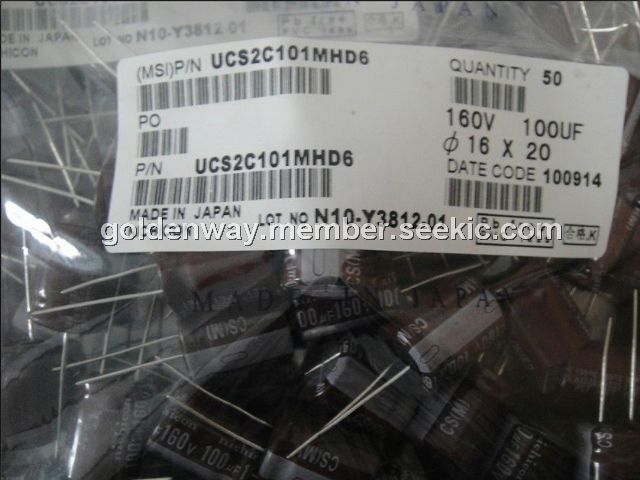

The UCS2C101MHD6 is an aluminum electrolytic capacitor.
Parametrics
UCS2C101MHD6 general specifications: (1)Category Temperature Range:鈥?0鈩?to +105鈩?160 to 400V), -25鈩?to +105鈩?450V) ; (2)Rated Voltage Range:160V to 450V; (3)Rated Capacitance Range:6.8 to 330渭F; (4)Capacitance Tolerance:卤20% at 120Hz, 20鈩?
Features
UCS2C101MHD6 features: (1)High ripple current and Long Life product withstanding load life of 8000 to 10000 hours at +105鈩? (2)Suited for ballast application; (3)Adapted to the RoHS directive (2002/95/EC).
Diagrams
<P><IMG border=0 alt="UCS2C101MHD6 package dimensions" src="http://www.seekic.com/uploadfile/ic-mfg/20126533436551.jpg"></P>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UCS2C101MHD6 |
Nichicon |
Aluminum Electrolytic Capacitors - Leaded 160volts 100uF 16X20 20% |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
UCS2C101MHD6TN |
|
CAP ALUM 100UF 160V 20% RADIAL |
Data Sheet |
|
|
||||||||||||||||||||
